For companies shipping palletized products in full truckload quantities, package testing is about more than protecting individual boxes. It is about ensuring the stability and performance of an entire unitized load throughout the distribution process.

That is where ISTA 3E testing comes in.

Designed specifically for palletized shipments moving through full truckload (FTL) distribution environments, ISTA 3E helps manufacturers, retailers, and distributors evaluate how products and packaging perform when shipped as a unitized load. With recent updates released in 2026, understanding the standard and its latest revisions is more important than ever.

What Is ISTA 3E?

ISTA 3E is a general simulation performance test developed by the International Safe Transit Association (ISTA) for unitized loads of similar packaged products shipped through a full truckload distribution system.

A unitized load typically consists of products secured together on a pallet using stretch wrap, banding, or other stabilization methods. Examples include:

• Stretch-wrapped pallet loads of individual containers

• Palletized retail products

• Institutional packaged products

• Equipment secured directly to a pallet

Unlike ISTA 3A, which focuses on individual parcels, ISTA 3E evaluates the performance of an entire palletized load as it moves through the supply chain.

The goal to ensure load stability, and performance through the distribution environment, in addition to product protection.

When Is ISTA 3E Used?

Testing helps determine whether the unitized load can withstand these conditions without product damage or load instability.

Because palletized shipments are handled differently than parcel or LTL freight, they face a unique combination of transportation hazards including:

• Vibration

• Compression forces

• Load shifting

• Impact events

• Warehouse stacking




What Does ISTA 3E Testing Include?

ISTA 3E uses a sequence of tests designed to simulate common transportation and handling hazards experienced during truckload shipment.

While specific test parameters vary, ISTA 3E follows a defined sequence designed to simulate cumulative stress:

1. Atmospheric Preconditioning: The unitized load is preconditioned to ambient temperature and humidity conditions before testing begins, establishing a consistent baseline for evaluating material performance. This step is required.

2. Atmospheric Conditioning: An optional step in which the load is exposed to controlled temperature and humidity levels selected from a standardized chart, simulating environmental conditions the load may encounter during storage and transit.

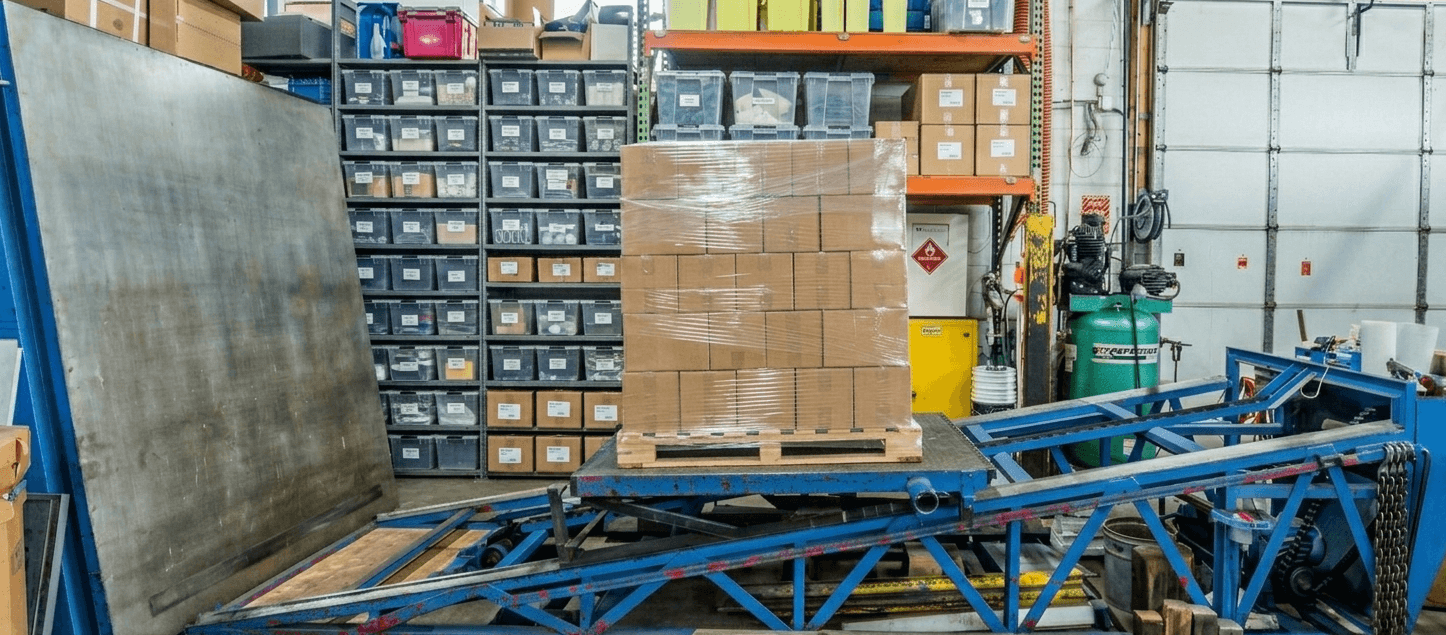

3. Shock Testing: Incline or Horizontal Impact: The palletized load undergoes incline impact or horizontal impact testing, simulating handling events during loading, unloading, and transit.

4. Shock Testing - Rotational Edge Drop: The load is subjected to rotational edge drop testing at heights that vary based on packaged product weight, simulating tip-over and edge impact events that occur during handling.

5. Compression Testing: The load is subjected to compressive forces simulating warehouse stacking.

6. Vibration Testing: The load undergoes random vibration testing, replicating the forces experienced during over-the-road trucking across extended distances.

7. Shock Testing - Rotational Edge Drop (Second Application): A final round of rotational edge drop testing is performed, completing the simulation of cumulative handling hazards across the full distribution cycle.

At the conclusion of testing, the load and individual packages are evaluated for product damage, load stability, and packaging integrity. Results inform decisions about whether the current packaging system is adequate or whether design modifications are needed before products enter the supply chain.

What's New in the 2026 Revision?

In 2026, ISTA released several important updates to Procedure 3E following a formal review process focused on improving alignment between laboratory testing and real-world distribution environments.

While the overall purpose of the standard remains unchanged, several revisions may affect testing plans and package validation programs.

Compression Formula Update

One of the most significant changes involves the compression calculation methodology.

The revised standard returns to a previous compression formula approach while aligning with the methodology used in ISTA 3H. The updated language clarifies that the largest potential stack configuration must be used when determining compression loads.

This change helps ensure testing more accurately reflects real-world stacking conditions.

Pallet-on-Top Requirement Changed

Under previous versions of the procedure, placing an additional pallet on top of the test sample during compression testing was required.

Under the 2026 revision, this pallet-on-top configuration is now optional. Companies may choose to include it if it better represents their actual distribution environment.

This change provides greater flexibility while allowing testing to better match real-world supply chain conditions.

Impact Sequence Clarifications

The 2026 revision also clarifies incline, horizontal, and rotational impact sequences.

The severity and intent of the test remain unchanged. However, labs now have greater flexibility regarding the order in which required impacts are performed, provided all required faces and edges are tested.

This improvement reduces ambiguity and promotes more consistent test execution across laboratories.

What Do These Changes Mean for Manufacturers?

For most organizations, the revisions will not require major packaging redesigns. However, they may require updates to:

• Test plans

• Compression calculations

• Validation protocols

• Internal packaging specifications

Companies currently testing older versions of ISTA 3E should review their programs to ensure they remain aligned with the most current procedure.

Using the latest version of the standard helps ensure testing results remain relevant, defensible, and reflective of actual transportation conditions.

Why ISTA 3E Testing Matters

Palletized loads represent a significant portion of global product distribution.

When a unitized load fails, the consequences can extend beyond a single damaged product.

ISTA 3E testing helps identify potential weaknesses before products enter the supply chain, allowing organizations to make informed packaging decisions based on objective performance data.

Partner with Gaynes Labs for ISTA 3E Testing

At Gaynes Labs, we help manufacturers evaluate packaging systems under realistic distribution conditions through ISTA-certified testing programs.

We have the heavy-duty equipment and knowledge of the testing standards to fulfill your testing needs for palletized loads.

Whether you are validating a new pallet configuration, reviewing compliance requirements, or adapting to the latest ISTA 3E revisions, our team can help you develop a testing plan aligned with your distribution environment.
