Drop Testing

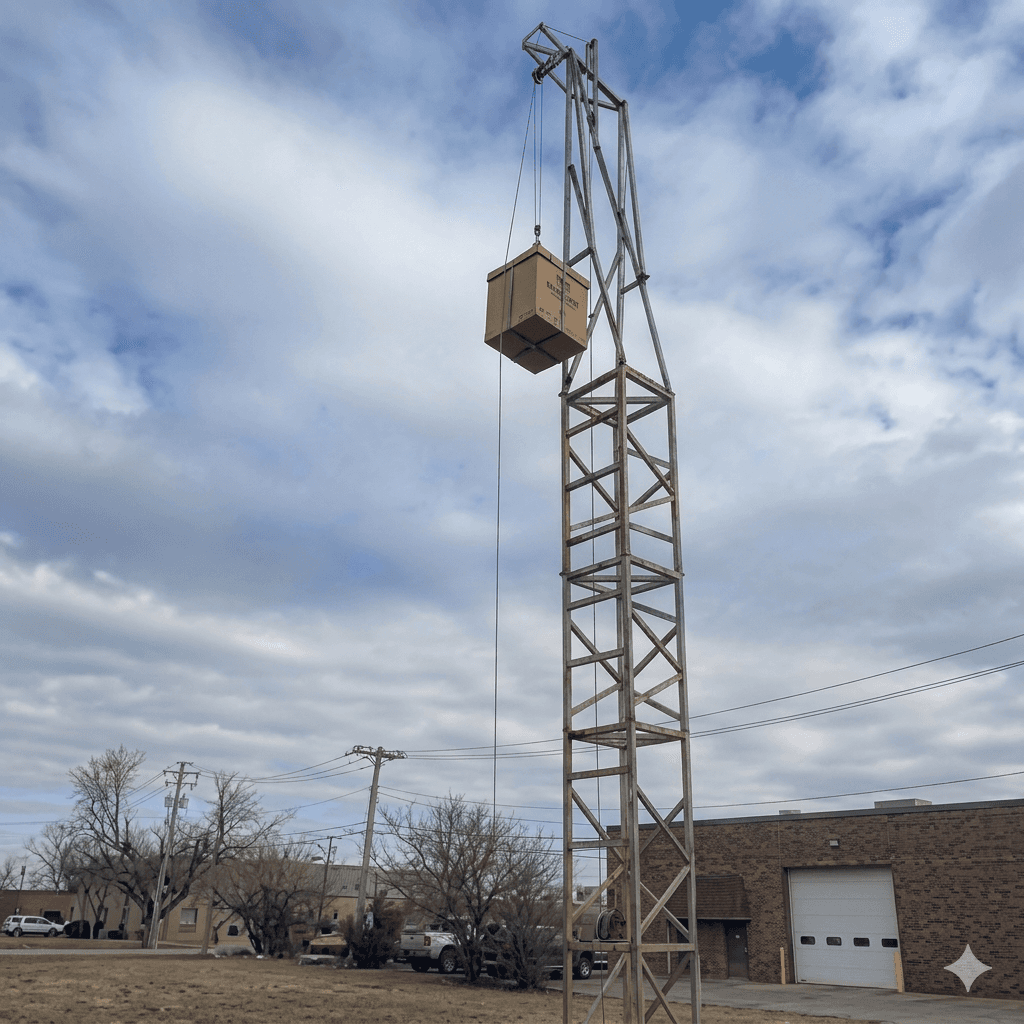

Drop testing at Gaynes Labs evaluates the ability of packages, containers, and products to withstand the impacts of handling, transportation, and distribution. Testing is performed using controlled free-fall and rotational drop methods across a wide range of package sizes and weights. We are able to drop products ranging from small retail cartons to large industrial containers including drums, IBCs, and electric vehicle battery crates.

Request a Quote

Drop Testing Capabilities

Free-Fall Drop Testing
Rotational Drop Testing
Controlled Drop Sequences per ISTA, ASTM, and UN/DOT protocols
Face, Edge, and Corner Drop Orientations
Variable Drop Heights based on package weight and packing group
Large-Format and Heavy-Load Capacity — hundreds of pounds

Tests Performed

Free-Fall Drop — face, edge, and corner orientations per ISTA and ASTM standards
Rotational Drop — diagonal and chime-impact orientations per UN/DOT 49 CFR
Controlled Drop Sequences — programmed multi-orientation sequences per ISTA 1-, 2-, and 3-series protocols
Incline Impact — horizontal impact simulation as a drop substitute where applicable

Standards Supported

ISTA

ISTA 1A, 1B, 1C, 1D — drop sequences for individually packaged products under and over 150 lbs
ISTA 2A, 2B — partial simulation drop testing for parcel and LTL shipments
ISTA 3A, 3B, 3E, 3F — full distribution simulation drop sequences for parcel, LTL, FTL, and retail channels
ISTA 6-Amazon.com SIOC, ISTA 6-Amazon.com Over Box, ISTA 6-FedEx-A, ISTA 6-FedEx-B, ISTA 6-SamsClub

ASTM

ASTM D5276 — drop test of loaded containers by free fall, the primary standalone drop test standard
ASTM D4169 — drop sequences within full distribution simulation programs
ASTM D7386 — drop testing for single parcel delivery systems
ASTM D880 — impact testing for shipping containers and systems
ASTM D5277 — incline impact testing as a drop equivalent

UN/DOT

49 CFR 178.603 — drop testing for UN-certified non-bulk packaging including drums, pails, jerricans, fiberboard boxes, and crates across Packing Groups I, II, and III
49 CFR Part 178 Subpart O — drop testing for UN-certified IBCs
49 CFR 173.185 — packaging performance requirements for lithium ion battery shipments (UN3480, UN3481), including drop testing for protective enclosures and crates used for large-format batteries weighing 12 kg or more

Drop Testing Applications

Gaynes Labs performs drop testing for manufacturers, packagers, and distributors across a wide range of industries and container formats.

Medical Devices & Healthcare
Drop testing is a required element of ISTA and ASTM distribution simulation for medical device packaging validation. Gaynes Labs performs the controlled drop sequences required for FDA-recognized distribution validation across parcel and LTL channels.

E-Commerce & Retail
Carrier and retailer certification programs require specific drop sequences at defined heights and orientations. Gaynes Labs performs drop testing in support of ISTA 6-Amazon.com SIOC, ISTA 6-Amazon.com Over Box, ISTA 6-FedEx-A, ISTA 6-FedEx-B, ISTA 6-SamsClub, and ISTA 3A for USPS parcel compliance.

Chemicals, Agriculture & Industrial
UN/DOT certification under 49 CFR requires drop testing of drums, pails, jerricans, fiberboard boxes, and IBCs at drop heights determined by packing group. Gaynes Labs performs the full 49 CFR 178.603 drop test protocol for non-bulk packaging and 49 CFR Part 178 Subpart O for IBC qualification and periodic revalidation.

Automotive & Electric Vehicles
Large-format lithium ion battery packs and EV battery crates classified as UN3480 or UN3481 under 49 CFR 173.185 require packaging that can demonstrate impact resistance and protection during transport. Gaynes Labs performs drop testing on protective enclosures, wooden slatted crates, and outer packaging used for lithium ion battery shipments, supporting compliance with DOT hazmat transport requirements for EV and industrial battery manufacturers.

Consumer Products & General Manufacturing
Packaging engineers and product developers use drop testing to identify failure modes, validate designs, and qualify new packaging before production launch. Gaynes Labs performs ISTA 1-series screening drops for early-stage design evaluation and full ISTA 3-series and ASTM D4169 drop sequences for distribution validation.

Packaging Manufacturers & Designers
Corrugated manufacturers, contract packagers, and packaging engineers use independent drop testing to validate new designs against customer specifications and distribution requirements. Gaynes Labs provides the independent third-party drop test documentation required for customer approval programs and retailer compliance.

Frequently asked questions

What drop heights are used in drop testing, and how are they determined?

Drop heights in controlled testing are not arbitrary, they are specified by the standard. For ISTA protocols, drop height generally decreases as package weight increases. For UN/DOT certification, drop heights are generally determined by packing group. ASTM drop heights are similarly weight-based and aligned with the distribution program parameters. Drops are typically performed in multiple orientations (face, edge, and corner) to evaluate the package from the angles most likely to cause failure in real-world handling. We are able to help you determine the applicable drop height and procedure based on your package characteristics and standards being followed.
